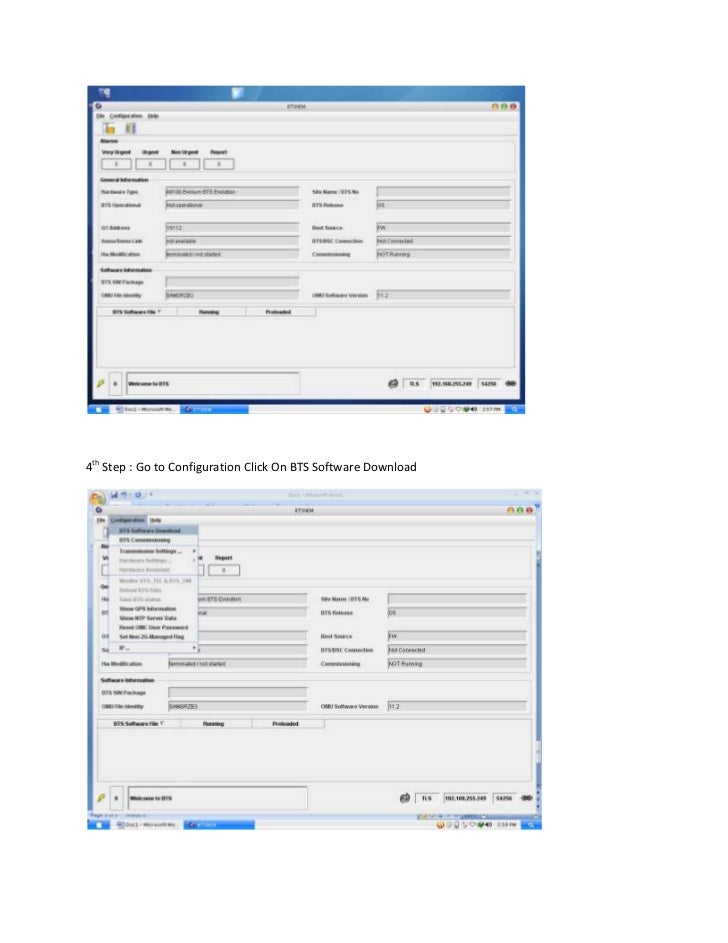

Bts commissioning (alcatel lucent) • 1. Switch OFF the BTS cabinet and disconnect Abis connectors fromDDF before offline start • Disconnect the Abis connectorfrom The DDF • Switch ON the BTS cabinet breakers and connect the Laptop with BTS • User Name “COMMTE” Password“COMMTE” • Communication Port setting • OR • After connecting this windowwill be appear • Go toConfiguration-> BTS-SW Download->Electri6ity guitar. to download BTS software • After BTS- SW downloadthis window will appear • Go to offlineFiles and select First File of Master File.

The Alcatel 9110-E BTS can be considered as a radio rela ys between the subscriber’s mobile station and the. Wall/pool and indoor/outdoor installation.

• Go to offlineFiles and select First File of DDL file. • Click ok to startdownloading SW • BTS software starts to download. • All these Files aredownloaded • Go toConfiguration BTScommissioning • Click startcommissioning • Edit Qmux Address • Edit sector Mapping • Check AllTwin TRE’s. • Click EndCommissioning Click > Hardware setting>>BeginHW modification • Go to configuration> BTS commissioning Go to start commissioning> Edit Q1Address, Edit SectorMapping and Twin TRA setting as in offline.

• Go toconfiguration> Hardware setting>“EndModification” to end onlinecommissioning • Online commissioning steps Connect the Abis connector at DDF by verifying Tx/Rx cable properly. OML will be established after primary Abis has connected to DDF. Give hard reset to BTS after OML has established. Put site on Downloading from OMC. O&M will be established as downloading completes. Connect Laptop to BTS MMI port. Go to configuration>Hardware setting>Begin Hardware modification. • Online commissioning steps Go to configuration>BTS commissioning>start commissioning. Edit Qmux Address Edit sector mapping Check all Twin TRA setting. Click end commissioning and shift all modules from selected modules to available modules. Go to configuration>Hardware setting>End Hardware modification. Click “yes” when an automatically hardware modification window appears. Hw Audit will be run and all Hardware will be shown after sometime.

• ON Line Commissioning Completed Successfully. • Software components combiner Fan UnitHardwareShown insoftware window Tre’s clock Alarm card • Alarmswindow • Transceivers Shown in window • Transceivers Types Four type of Transceivers in Alcatel Equipment TRAGE>Gsm Single TRE TRADE>Dcs single TRE TGT09>Gsm Twin TRE TGT18>DCS Twin TRE TAGHE>High power TRE • VSWRShown in window • Sectors ShownIn window • Station units • BSC SBLs(security block levels)BTS OM & Sectors.Sec RSLs can be unlock from local Terminal. • Troubleshooting If a TRE or combiner is in “Not Operational” or “FOS” state then disable it then initialize it by using “init” command. If TRE or combiner can not operational by doing above command then remove it by using the following method. Go to configuration>>Hardware setting>>Begin HW modification. Go to Configuration>>Hardware setting>>Remove. Remove the Hardware from BTS. Window will be appear of Hardware removal, select the module to remove. Go to Configuration>>Hardware setting>>End Modification. Click ”yes” when configuration changes window appears.

• HardwareRemoval Method Step:1 • HardwareRemoval Step:2 • HardwareRemoval Step:3 • Troubleshooting cont. When a module goes in “FOS” state then it must be disable by using ”disable” command before initializing it by using “init” command otherwise it will not goes to operational state. When a module is in “Not Operational” state with color white then it means it has not got it’s RSL number still. Reload BTS data by going to “configuration>Reload Bts data” or using a method of “Begin Hardware then End Hardware” as discussed earlier. It will take some time to become operational. When a module is in “MSD” or “MSA” state then it will not get any command because its maintenance has seized for a while. When TRE RSL has locked then then its RSL will not be stable, so unlock the TRE from OMC. • Troubleshooting cont. Sometime there is some faulty hardware in Bts that’s why other sectors or TRE’s can effect and can not work properly.
